DJI Agras T70P – High-Efficiency Agricultural Drone
The DJI Agras T70P is a powerful multifunction agricultural drone built to handle spraying, spreading, and lifting tasks with high efficiency and reliability. Designed for large fields and orchards, it combines strong performance with advanced safety systems for smooth, precise operations.
Key Features:
- 70 L Spray Tank & 100 L Spread Tank: Large capacities for fewer refills and longer missions.
- Spray Flow Rate: Up to 40 L/min (with optional 4-nozzle setup).
- Spreading Rate: Up to 400 kg/min for granular materials.
- Max Lifting Capacity: Up to 65 kg for cargo or equipment operations.
- Safety System 3.0: Millimeter-wave radar and Tri-Vision obstacle sensing for improved awareness.
- RTK Precision: Optional RTK GNSS for enhanced positioning accuracy.
- Operating Conditions: 0 °C to 40 °C, wind resistance < 6 m/s.
Use Cases:

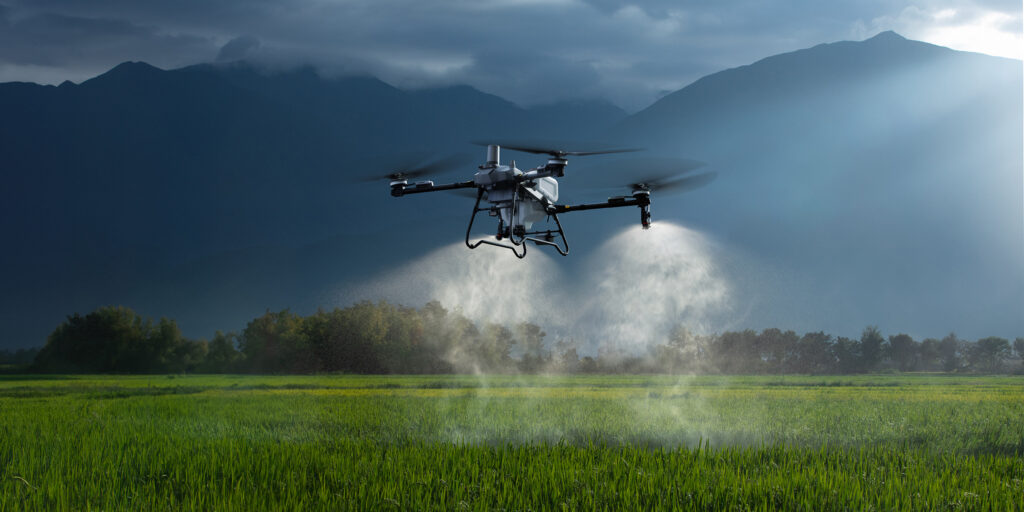

- Precision crop spraying and fertilization
- Granular spreading (fertilizer, seed)
- Cargo lifting and delivery support during farm operations
- Orchard and large field management
DJI Agras T70P – Product Specifications
General
- Aircraft Weight: ~56 kg with DB2160 battery
- Max Takeoff Weight:
- Spraying: up to 126–130 kg
- Spreading: up to 130 kg
- Lifting: up to 118.5 kg
- Operating Temp: 0 °C to 40 °C
- Max Wind Resistance: < 6 m/s
- Max Configurable Flight Radius: 2 km
Spraying System
- Tank Volume: 70 L
- Spray Flow Rate:
- 30 L/min (standard 2 nozzles)
- 40 L/min (optional 4-nozzle)
- Spray Width: 4 – 11 m
- Droplet Size: 50 – 500 μm
Spreading System
- Spreading Tank Volume: 100 L
- Max Spreading Rate: 400 kg/min
- Effective Spreading Width: ~3 – 10 m
- Granule Size Range: 0.5 – 10 mm
Lifting System
- Lifting Capacity: 65 kg
- Lifting Cable (Std): 10 m
Safety & Obstacle Avoidance
- Safety System: Safety System 3.0 (mmWave radar + Tri-Vision obstacle sensing)
- Obstacle Detection Range: Up to 60 m (approx.)
Propulsion & Structure
- Propellers: 62-inch Carbon Fiber Composite
- Dimensions:
- Arms & propellers unfolded: ~3200 × 3520 × 960 mm
- Folded: ~1820 × 2100 × 960 mm
-
RTK Support: ±10 cm (with RTK)
Safety & Control
- 360° obstacle awareness with radar + vision
- Suitable for spraying, spreading, and lifting applications
- Real-time, precise flow and control via the DJI SmartFarm app
