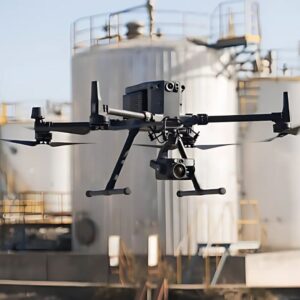

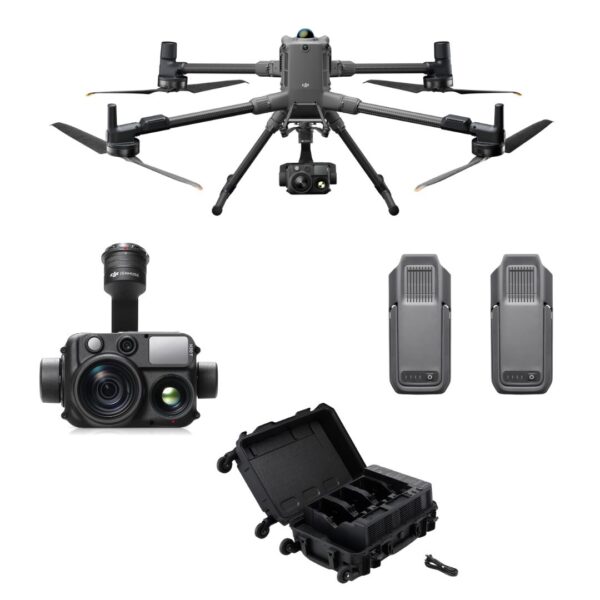

DJI Matrice 400 Zenmuse H30T

Inquire for Pricing

The DJI Matrice 400 Zenmuse H30T delivers extended endurance, heavy payload support, and robust weather resistance, paired with a cutting-edge multi-sensor camera system for all-day, all-condition operations. Ideal for inspection, mapping, and public safety, it ensures precision, efficiency, and reliability in every mission.

- +

A Complete Aerial Solution with Multi-Sensor Intelligence

The DJI Matrice 400 Zenmuse H30T Package combines long-endurance flight performance with advanced multi-sensor imaging for unmatched versatility. With up to 59 minutes of flight time, 6kg payload capacity, and the all-weather Zenmuse H30T camera system, itโ€™s built to handle critical missions in search and rescue, inspection, and public safetyโ€”delivering reliable results in even the toughest environments.

Matrice 400 Zenmuse H30T Feature Highlights

Extended Flight Time and Endurance
The Matrice 400 delivers up to 59 minutes of forward flight time with payload and 53 minutes of hover time, making it ideal for long-duration missions such as search and rescue, firefighting, and wide-area mapping.

Heavy Payload Capacity and Versatility
With a 6 kg maximum payload capacity and support for up to 7 simultaneous payloads, the M400 is built for flexibility. It accommodates single and dual downward gimbals, a third underside gimbal, and multiple accessories via 4 external E-Port V2 connectors.

All-Weather, Multi-Sensor Imaging
The Zenmuse H30T integrates five powerful modules: wide-angle, zoom, infrared thermal, laser rangefinder, and NIR auxiliary light. This all-weather payload delivers superior day-and-night imaging, smart detection, and advanced tracking for applications in public safety, inspection, and environmental monitoring.

Robust Build for Challenging Environments
With an IP55 protection rating, the Matrice 400 operates reliably in dust, rain, and temperatures from -20ยฐC to 50ยฐC. Its durable design ensures dependable performance in diverse and demanding environments.

Intelligent Features for Efficiency
Smart flight modes including terrain following, powerline follow, airborne relay, and maritime takeoff/landing streamline complex operations. Advanced automationโ€”such as Cruise, FlyTo, Smart Track, POI, and Smart Detection with the H30Tโ€”boosts mission efficiency and operator confidence.

Product Specifications

Aircraft โ€“ Matrice 400

  • Max Flight Time: Up to 59 minutes (forward flight with payload)
  • Max Hover Time: Up to 53 minutes
  • Max Payload Capacity: 6 kg (supports up to 7 payloads)
  • Payload Configurations: Single downward gimbal / Dual downward gimbals / Third underside gimbal connector
  • External Ports: 4 ร— E-Port V2 for multi-payload support
  • Ingress Protection Rating: IP55
  • Operating Temperature Range: -20ยฐC to 50ยฐC | -4ยฐF to 122ยฐF
  • Applications: Search and rescue, firefighting, mapping, energy inspections

Battery โ€“ TB100

  • Features: Extended flight endurance, heat dissipation system, self-heating for cold weather
  • Charge Cycles: Up to 400 cycles
  • Performance: Designed for reliable operation in extreme environments

Charger โ€“ BS100

  • Charging Slots: Supports 3 ร— TB100 and 2 ร— WB37 batteries sequentially
  • Charge Time: ~45 minutes per TB100 battery

Payload โ€“ Zenmuse H30T

  • Modules Integrated:
    • Wide-Angle Camera
    • Zoom Camera
    • Infrared Thermal Camera
    • Laser Range Finder
    • NIR Auxiliary Light
  • Imaging Capabilities: All-weather, multi-sensor imaging for day and night
  • Intelligent Features: High-res grid photos, robust tracking, smart detection (vehicles, vessels, subjects)
  • Applications: Public safety, energy inspection, water conservation, forestry, disaster response

Transmission & Communication

  • Video Transmission: Built-in relay module
  • Range: Extended transmission range with airborne relay between multiple M400 units
  • Stability: Strong anti-interference, ideal for mountainous or complex environments
