DJI Mavic 3TA Enterprise Drone | Advanced Thermal Imaging

DJI Mavic 3TA

The Mavic 3TA packs a high-resolution thermal camera, 56× hybrid zoom, and enterprise-grade flight performance into a portable platform built for rapid response and precision inspections. It’s the go-to tool for public safety, utility, and industrial teams that need fast, accurate thermal intelligence in the field.

Add to quote

DJI Mavic 3TA – Compact Enterprise Drone with Advanced Thermal Intelligence

The DJI Mavic 3TA is a commercial-grade, foldable enterprise drone combining high-resolution visual, telephoto, and advanced thermal imaging for professional missions. With up to 45 min flight time, 48 MP wide camera, 56× hybrid zoom, improved thermal sensing, and robust O3 Enterprise transmission, it delivers reliable performance for inspection, search & rescue, and industrial monitoring in diverse environments.

Key Features:

Up to 45 minutes flight time and compact foldable design for rapid deployment.
48 MP wide camera, 12 MP telephoto with 56× hybrid zoom for detailed visual captures.
Enhanced 8 μm thermal sensor for high-precision heat detection and temperature measurement.
Omnidirectional obstacle sensing and O3 Enterprise transmission for stable, safe operations.
RTK-compatible for centimeter-level positioning and mapping precision.

Use Cases:

Electrical and infrastructure inspection
Search & rescue and emergency response
Thermal analysis for buildings and utilities
Security and surveillance missions

DJI Mavic 3TA – Technical Specifications

Aircraft

Model: DJI Mavic 3TA (Thermal Advanced)
Weight (with propellers, without accessories): ~920 g
Max Takeoff Weight: 1,050 g
Folded Dimensions: 221 × 96.3 × 90.3 mm
Unfolded Dimensions: 347.5 × 283 × 107.7 mm
Diagonal Distance: 380.1 mm
Max Flight Speed (No Wind): 15 m/s (Normal) / 21 m/s (Sport)
Max Ascent Speed: 6 m/s (Normal) / 8 m/s (Sport)
Operating Temp: -10°C to 40°C
Max Wind Resistance: 12 m/s
Max Flight Time: ~45 minutes (no wind)

Imaging System

Wide Camera:

Sensor: 1/2″ CMOS, 48 MP
FOV: 84°, 24 mm eq.
ISO Range: 100–25,600
Still Image: Up to 8000×6000 (48 MP)
Video: 4K @ 30 fps / FHD @ 30 fps

Telephoto Camera:

Sensor: 1/2″ CMOS, 12 MP
FOV: 15°, 162 mm eq.
Digital Zoom: 56× hybrid zoom

Thermal Camera (Advanced):

Sensor: Uncooled VOx microbolometer
Pixel Pitch: 8 μm (enhanced detail)
Resolution: 640×512 @ 30 Hz
Thermal Lens: 41.2° DFOV, 60 mm eq.
Temperature Range: -20° to 150°C (High Gain), 0° to 500°C (Low)
Palette Options: Multiple palettes including Hot Iron & Rainbow
Zoom: 28× digital thermal zoom

Transmission & Positioning

Video Transmission: DJI O3 Enterprise Transmission
Max Transmission Range: Up to 15 km (FCC)
Live View: 1080p/30 fps

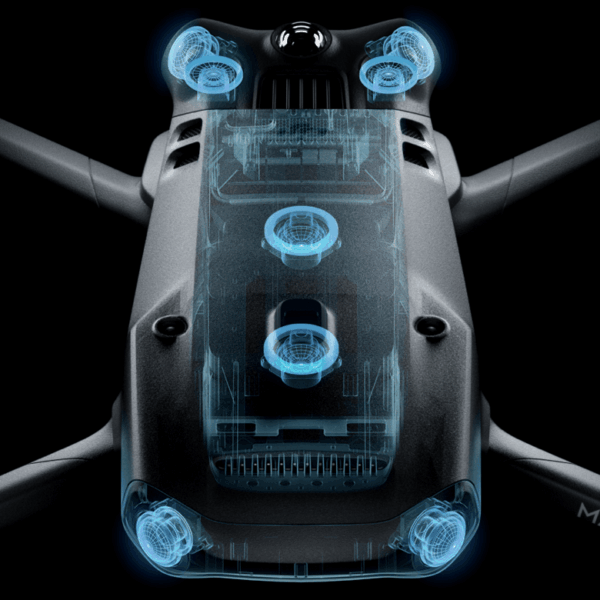

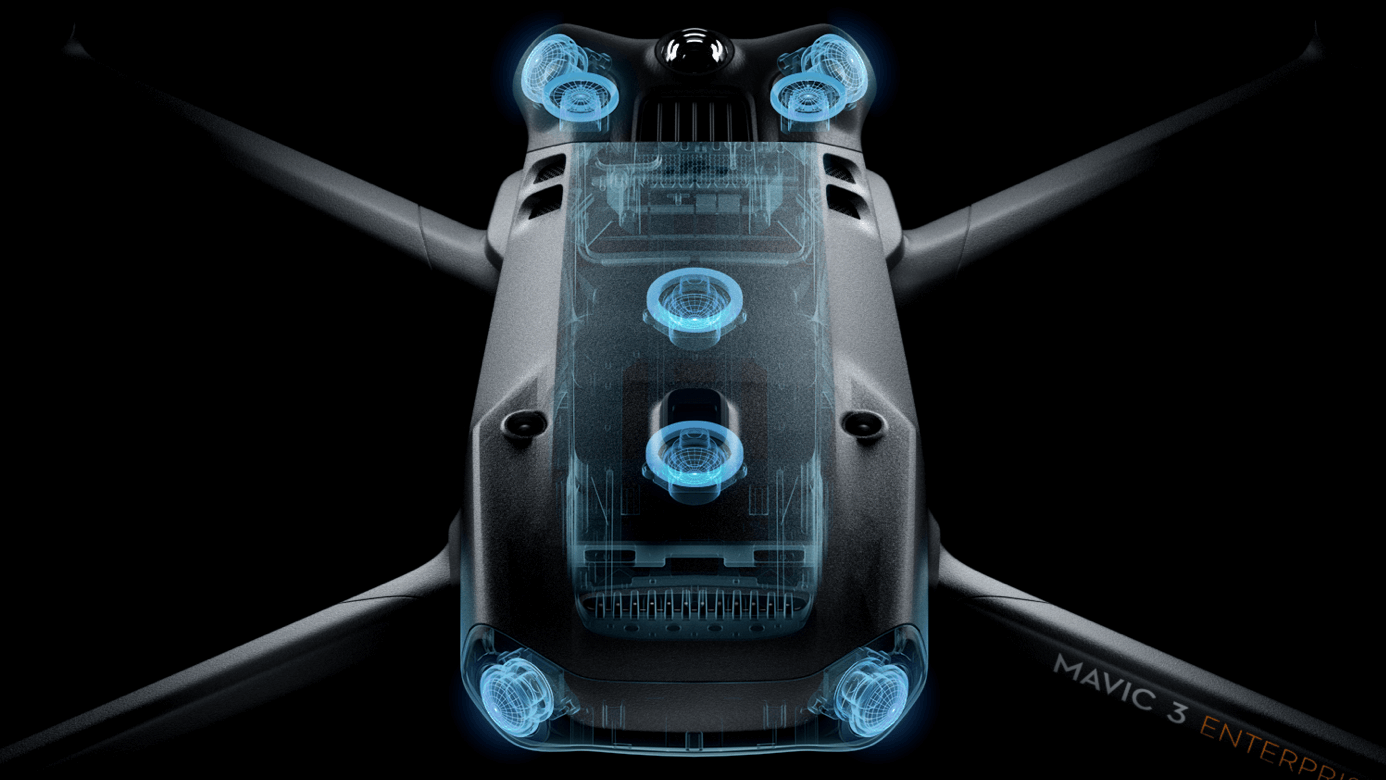

Obstacle Sensing: Omnidirectional sensors (forward, backward, lateral, downward)
RTK Support: Available via optional module (centimeter-level positioning)

Thermal Measurement
